Gasparin Prallbrecher GI1010CV K1

Price excl. VAT

POA

Compnay LOGO
Images2

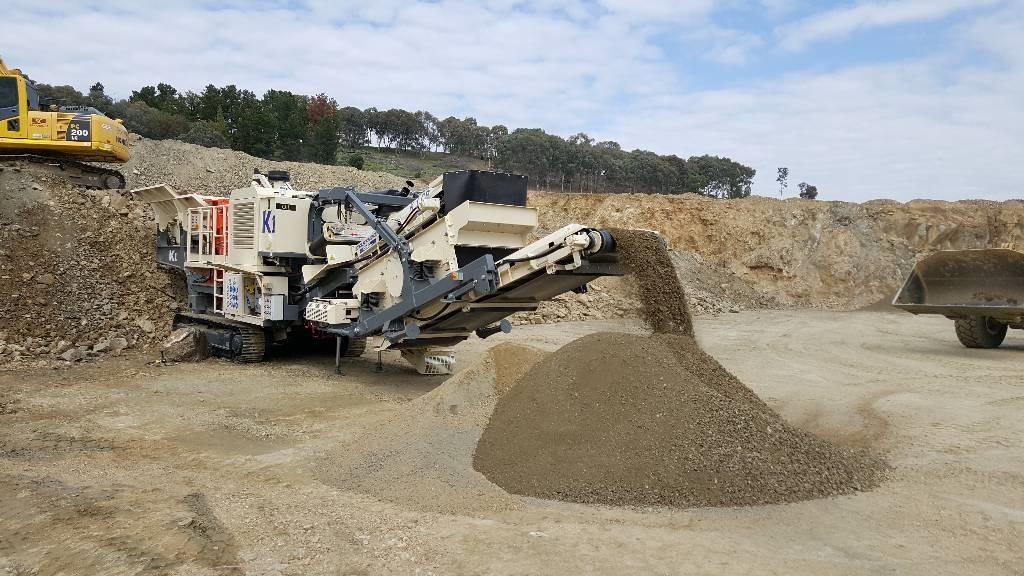

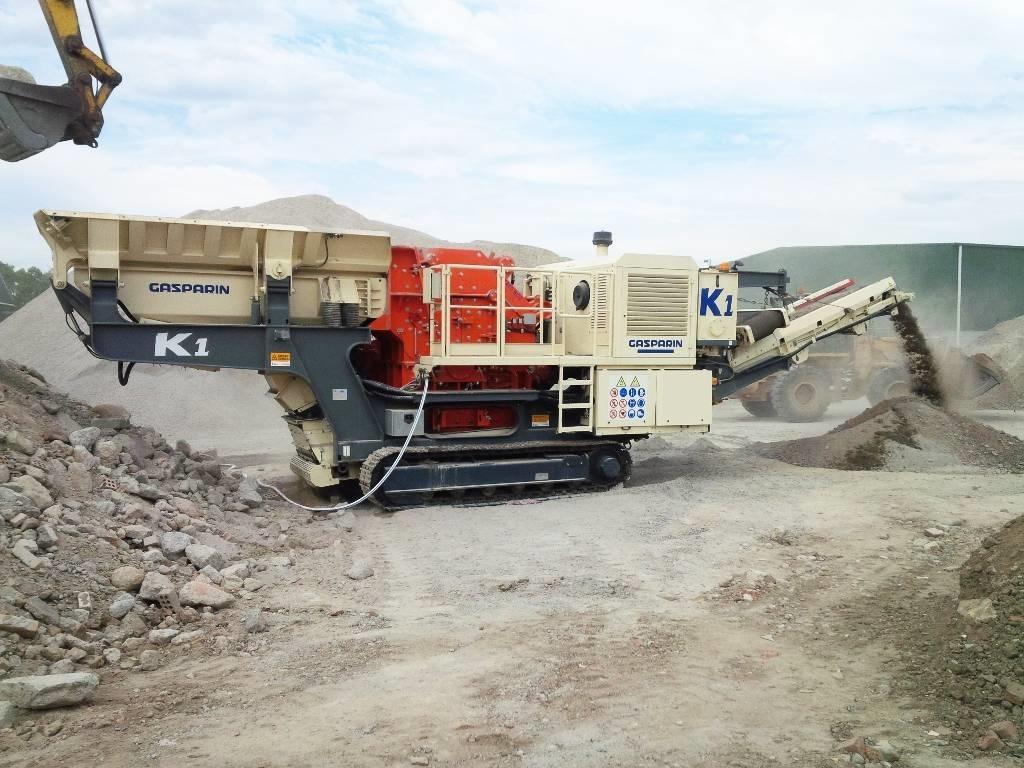

Gasparin Prallbrecher GI1010CV K1 Mobile crushers
Gasparin Prallbrecher GI1010CV K1 Mobile crushers
ShareShare
Print

INFO

Product group
Mobile crushers
Brand / model
Gasparin Prallbrecher GI1010CV K1
Year of manufacture
2025
Condition
New/unused
Machine location
Finowfurt bei Berlin, Brandenburg
Country
Germany
General grade
1
2
3
4
5
Mascus ID
8B4D58CC

DETAILS

Gross Weight
28,500 kg
Crusher type
Impact crusher
Output capacity (t/h)
250
Transport dimensions (LxWxH)
12560 x 2550 x 3200 mm
Other information
Tracked mobile impact crusher Gasparin CI1010CV K1 The K1 impact crusher with tracked undercarriage, the new addition to the product range with impact mill with a capacity of 250 t/h . Can be equipped with re-screening with closed circuit recirculation to perfectly calibrate the final product. It is appreciated for the excellent quality of the crushed product and also gives its best in terms of operating economy. Production capacity: approx. 250 TO/H Proportional distributor with "Load Sensing " for an optimization of the system and a reduction of fuel consumption of about 30%. gap hydraulically adjustable also during the crushing operation fast blocking system with wedges and folding cylinders dust extraction system tank pump magnetic separator warranty 1 year up to max. 1.500 operating hours from start of operation of the plant Technical data: Impact crusher type M1010 1000 x 700 mm crushing gap from 30 (20) to 100 mm (gap adjustment to 20mm only possible with 3rd grinding track) Feed hopper 4 m³ - 1800 x 3700 mm single deck vibrating screen 950 x 1500 mm Main conveyor belt 800 x 9600 mm 4 cylinder diesel engine with constant speed 82 HP/60 KW ; exhaust gas stage V Control panel chain drive 400 x 2900 mm weight 28.500 kg transport length 12560 mm Transport width:2550 mm Transport height 3200 mmShow more
